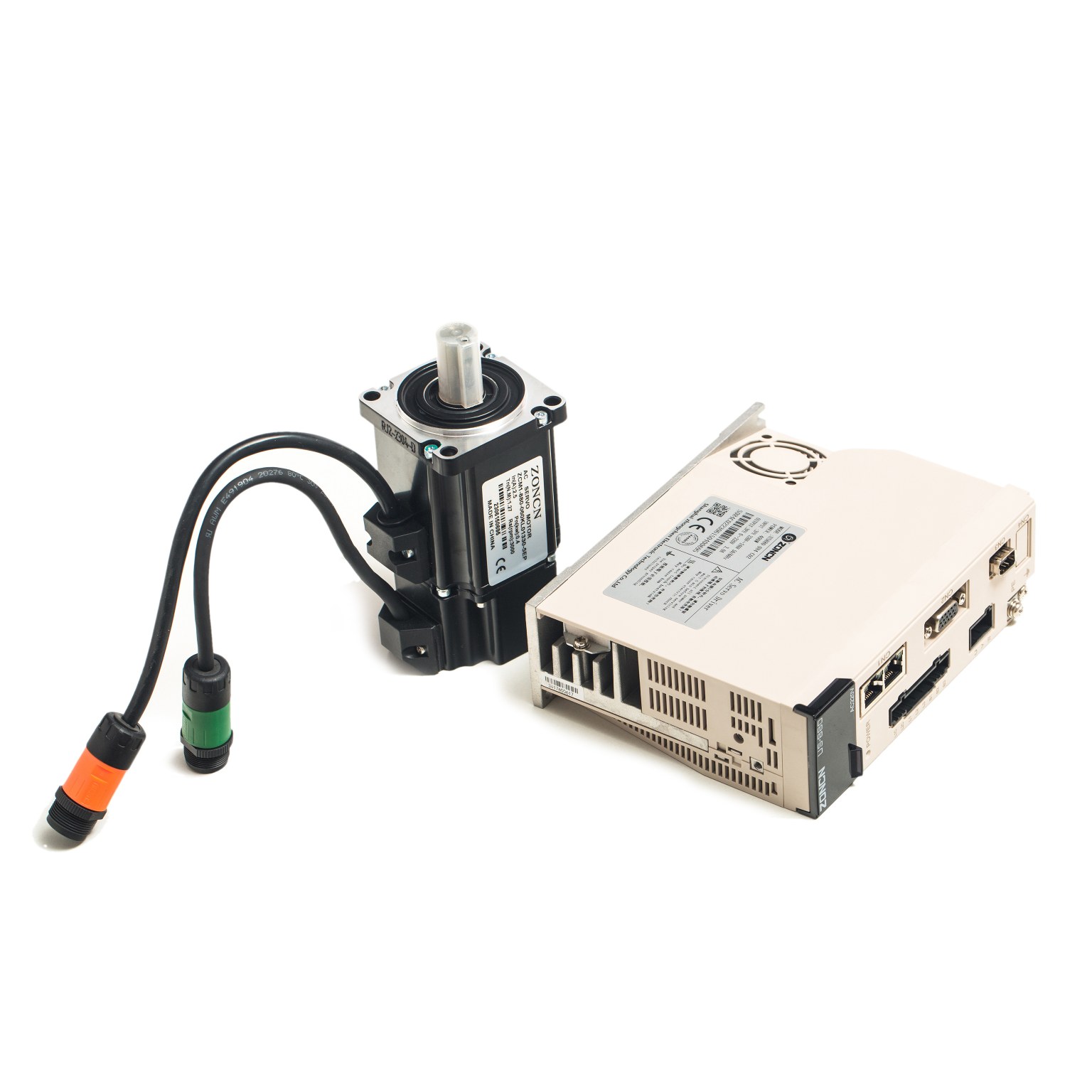

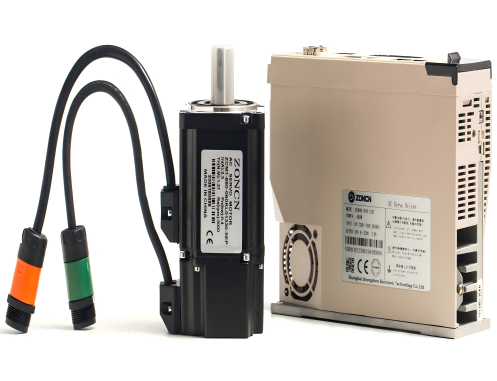

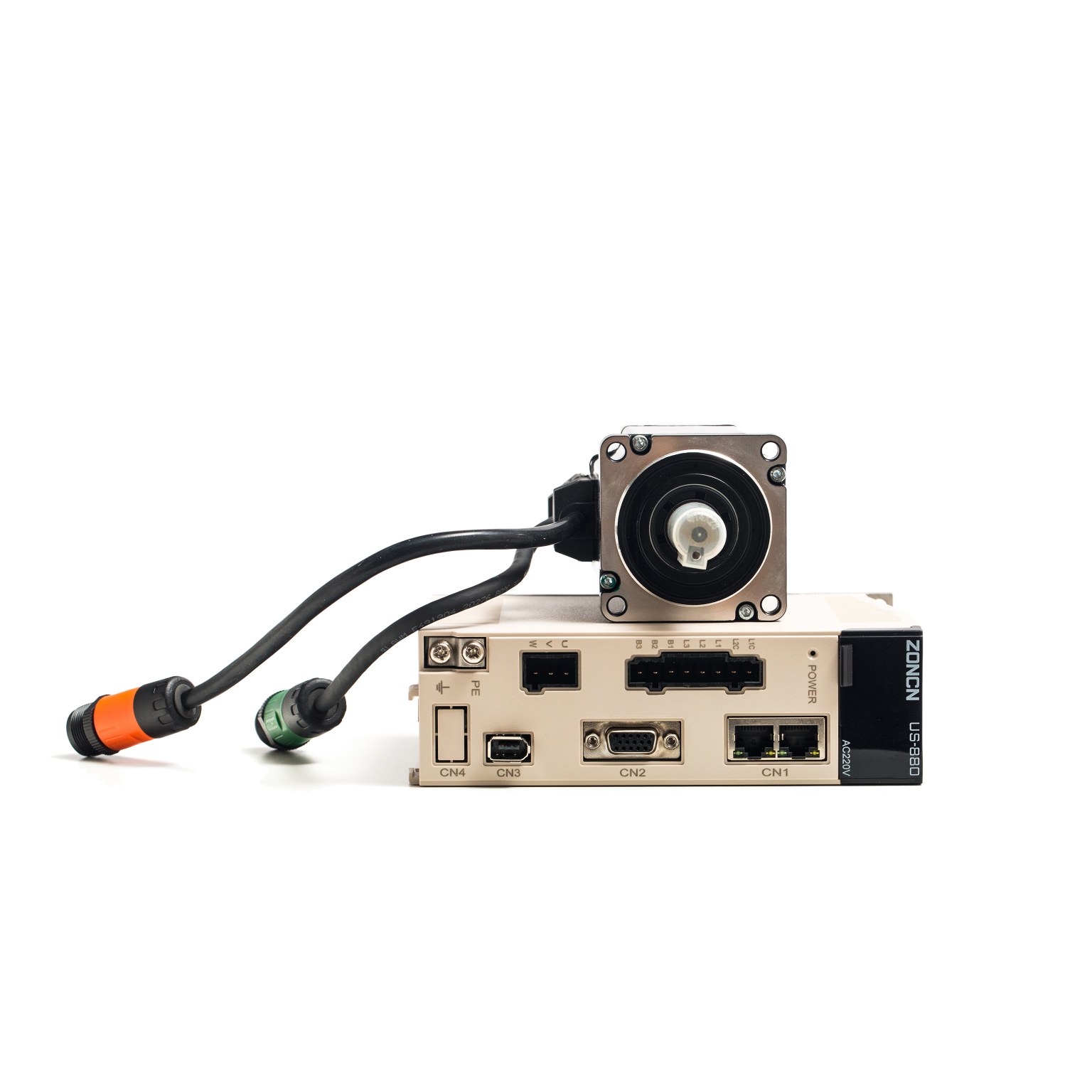

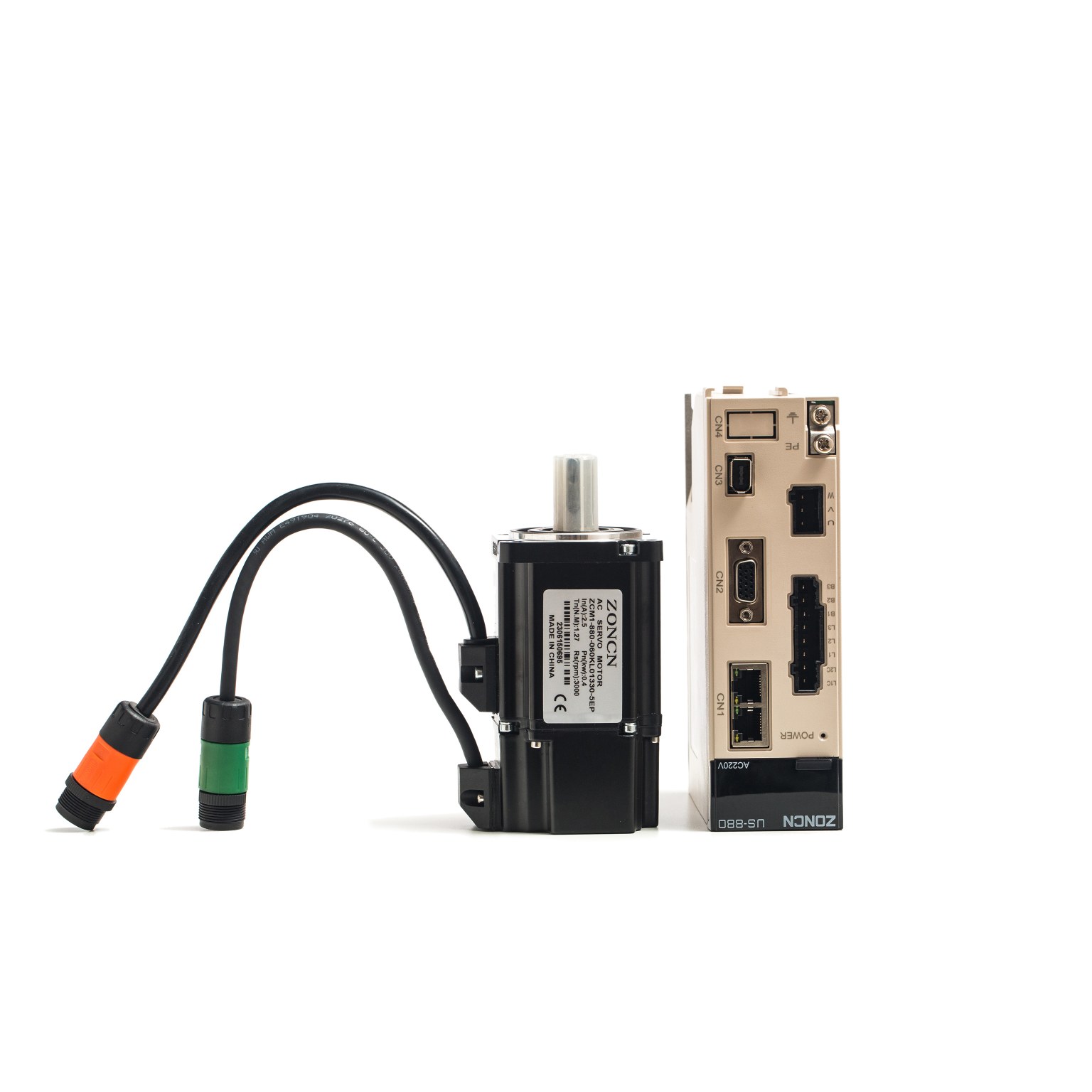

El US880/810 ofrece múltiples funciones de control, admite diversos protocolos de comunicación y cuenta con una amplia gama de ajustes de parámetros, lo que le permite gestionar tareas de mecanizado complejas. Es adecuado para tornos CNC, máquinas de grabado y fresado, y otros equipos similares.
Número de artículo :
NZ100Pedido (cantidad mínima de pedido) :
20Pago :
Paypal/TT/Western UnionOrigen del producto :
Shanghai, ChinaColor :
BlackPlazo de entrega :
18-30 daysPeso :
Maximum 1kgThe US880/810 boasts comprehensive control functions and communication protocol support, including advanced technologies such as position/velocity/torque control, dynamic braking and energy consumption braking, and zero-speed locking. It seamlessly integrates with the Ether CAT and Yaskawa M3 bus communication protocols, enabling the execution of various complex machining tasks through flexible parameter settings. Widely applicable to CNC lathes, engraving machines, milling machines, and other CNC equipment, it delivers stable and reliable control solutions for precision manufacturing across diverse industries, significantly enhancing machining efficiency and product quality.
Product Features
● Multi-function Control
● Position/Velocity/Torque Control
● Electronic Gear Function
● Speed/Torque Limit Function
● Home Search Function
● Zero-Speed Lock Function
● Smooth Speed Command Ramp Function
● Dynamic Brake and Energy Consumption Brake
● Multiple Fault Protection Functions
● Soft Reset Function
● Support Ether CAT Bus Communication Protocol
● Support Yaskawa M3 Bus Communication Protocol
Typical Applications
CNC lathes: Excellent product quality, high precision, fast speed, smooth surface, smooth and precise contouring of 3Dsurfaces, right angles and straight lines, chip cutting functionality.
Precision engraving machines: High resolution, precise positioning, matching of rotational inertia, high overload capacity.
Engraving and milling machines: Good speed stability, high precision, fast response frequency, wide speed range, low-speed high torque.
Engraving machines: Fast speed response, good product smoothness, minimal patterns, smooth curve cutting.
Drilling and tapping machines: High-speed and low-speed machining with high precision, wide adjustment range, adaptable to different product requirements.
Machining centers: Rich parameter settings, combined with debugging frequency division coefficients, inertia friction compensation, gain filter, and other parameters to accomplish various complex machining tasks.
Technical Specifications
| Item |
US880/US810 |
||||
|
Basic |
Input power |
Control Circuit Power |
1PHAC200V～AC240V 50/60Hz |
||
|
Main Circuit Power |
US880 |
US810 |
|||
|
3PH220V:0.2KW~5.5KW 3PH380V:1.5KW~11KW |
1PH220V:0.2KW~1.0KW 3PH220V:1.5KW~2.0KW 3PH380V:2.0KW～15KW |
||||
|
Environment Condition |
Temperature |
Environment temperature 0℃~55℃(without condensing) Storage temperature-20℃~65℃(Maximum temperature 87℃72 hours) |
|||
|
Humidity |
Both using and storage need to keep below 90%RH(without condensing) |
||||
|
Altitude |
Lower than 1000m |
||||
|
Vibration |
Less than 5.88m/S²,10-60Hz(Can not continuous use under resonance frequency) |
||||
|
Control mode |
IGBT PWM type sine wave drive |
||||
|
Encoder feedback |
24Bit(16777216)Absolute encoder 23Bit(8388608)Absolute encoder 17Bit(131072)Absolute encoder |
||||
|
Communication |
EtherCAT、M3 |
Industrial Ethernet bus(COE) |
|||
|
Operation panel |
1.4 keys 2.LED light 5 bits 3.CPU workable light 4.Vector signal monitor output |
||||
|
Brake resistor |
Built-in regenerative resistor (Can be external) |
||||
|
Dynamic brake |
Built in |
||||
|
Function |
Position control |
Signal input |
US880 series support EtherCAT.M3 |
||
|
US810 series support EtherCAT.Pulse signal input |
|||||
|
Resistance to vibration |
Support |
||||
|
Speed control |
Signal input |
US880 series support EtherCAT.M3 |
|||
|
US810 series support EtherCAT.External speed input |
|||||
|
Zero speed dead zone |
According to zero speed dead zone input |
||||
|
Instantaneous velocity observer |
Support |
||||
|
Speed command filter |
Support |
||||
|
Torque control |
Signal input |
US880 series support EtherCAT.M3 |
|||
|
US810 series support EtherCAT.External torque input |
|||||
|
Common use |
Protection |
Hardware error |
Over voltage,under voltage,over speed,overload,over heat,over current,encoder fault |
||
|
Software error |
Position deviation too large,command pulse frequency division,EEROM fault |
||||
|
Alarm data track |
Refer to alarm data list |
||||

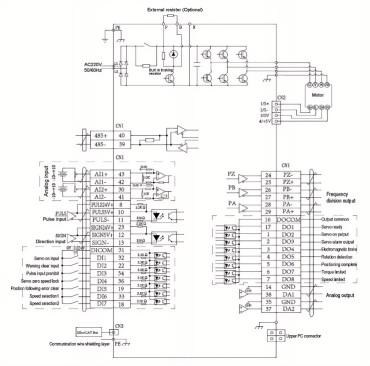

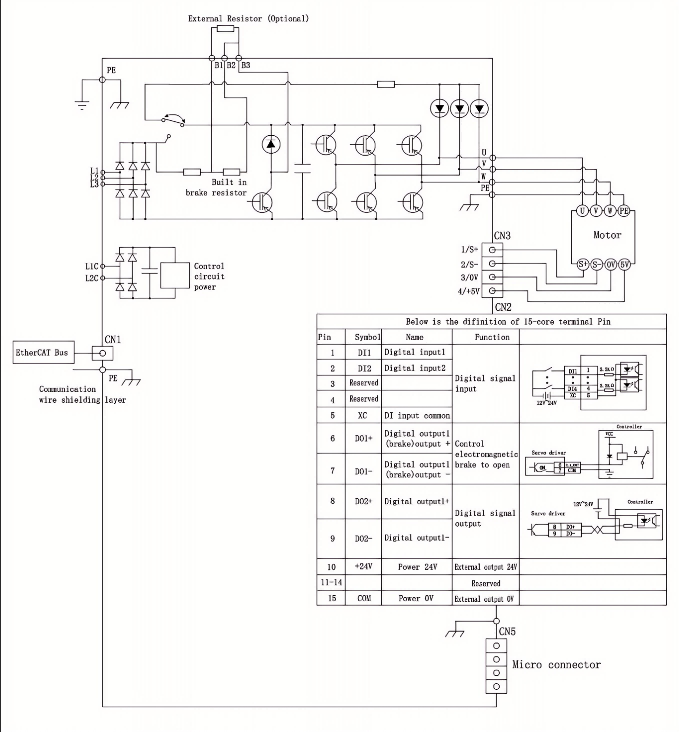

Typical Wiring Diagram
Dimension

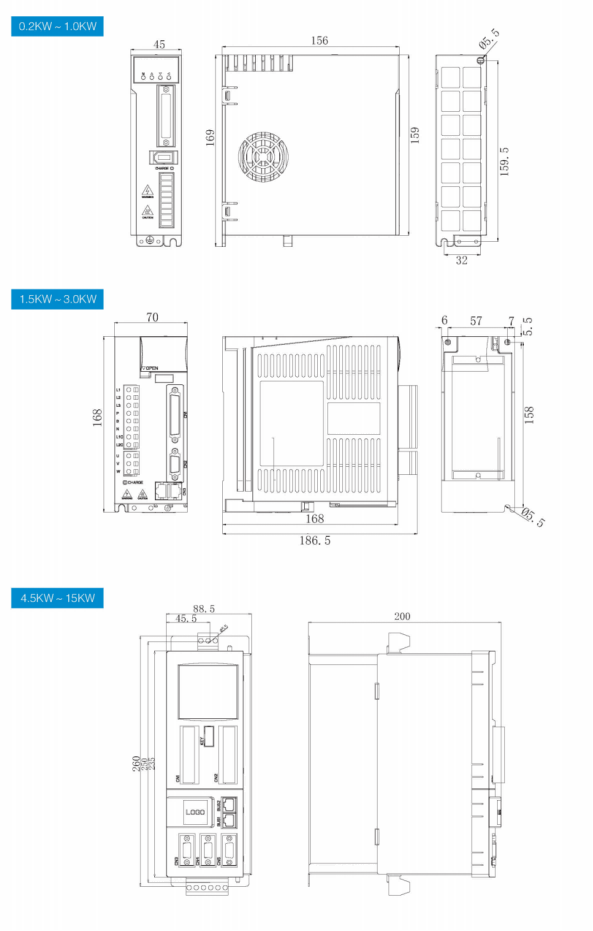

US880 Drive Installation Dimension
