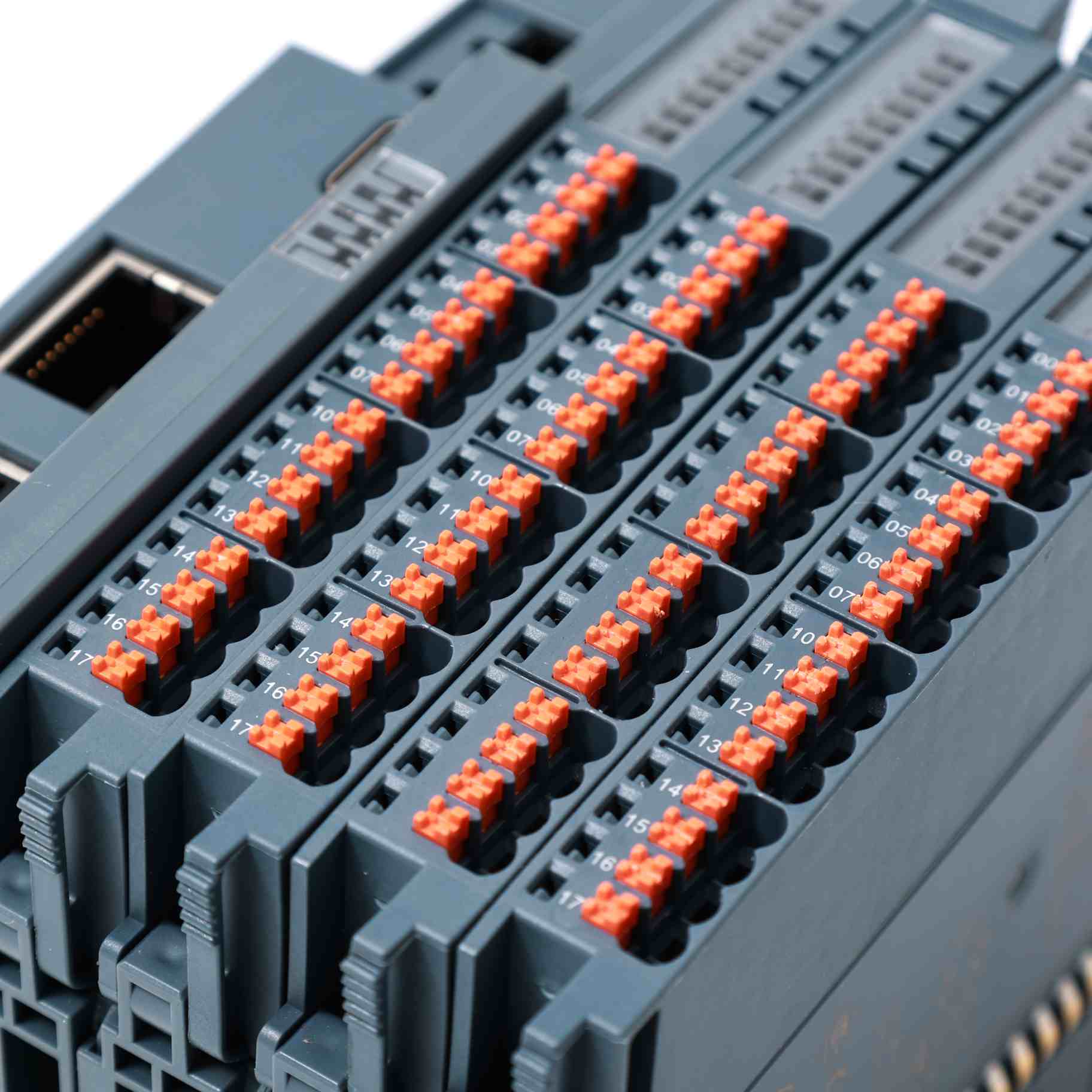

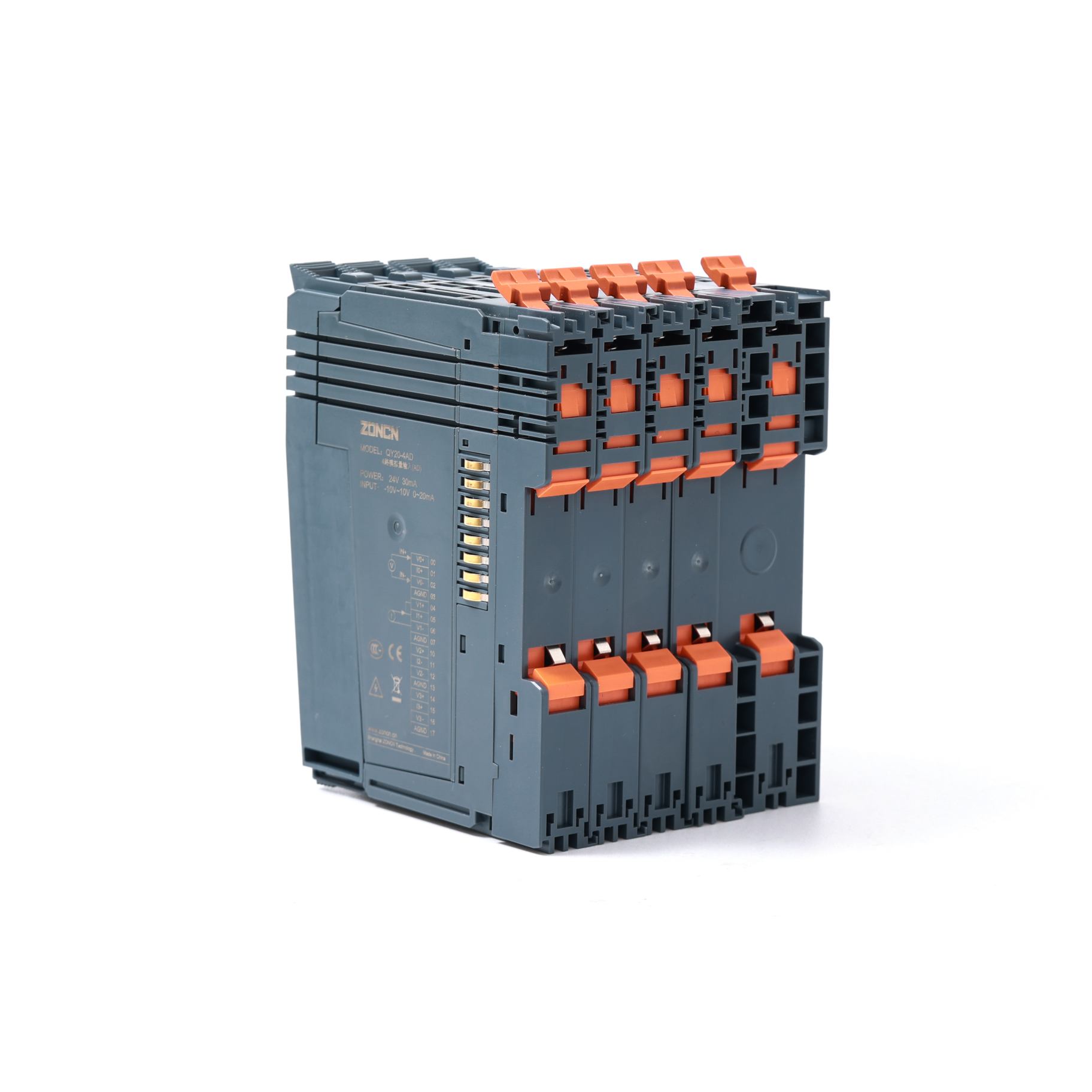

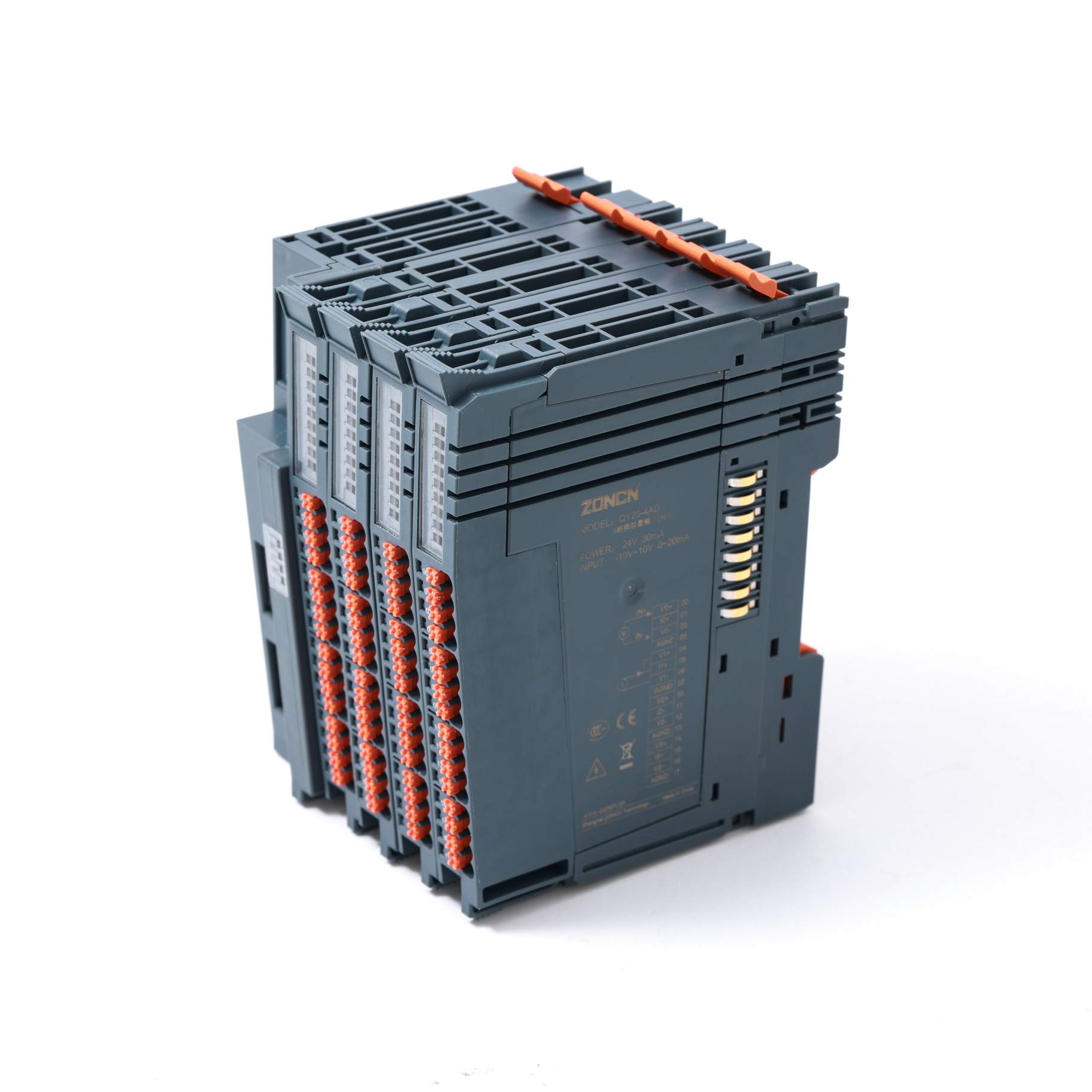

ZQ600 series High-performance Programmable Logic Controller

PLC de alto rendimiento serie ZQ600

El ZQ600 cuenta con potentes configuraciones de hardware y software, interfaces de comunicación completas y un rendimiento flexible e integral, lo que lo convierte en un controlador lógico programable de alto rendimiento.

Número de artículo :
ZQ600
Pedido (cantidad mínima de pedido) :
1
Pago :
Paypal/TT/Western Union
Origen del producto :
Shanghai, China
Plazo de entrega :
18-30 days
Peso :
1 kg

CONSULTE AHORA

The ZQ600 series is a high-performance PLC introduced by ZhongChen. Its design and development fully comply with the PLC open specifications and IEC 61131-3 standards, supporting programming languages such as ST, LD, SFC, and CFC. It features a powerful CPU, a stable and reliable software and hardware system design, and extensive expansion capabilities. This series is primarily used in motion control scenarios and complex network configurations on production lines, particularly suitable for multi-channel servo control, EtherCAT ring networks, and the integration of multiple bus protocols.

Product Features

Powerful hardware and software configuration

Dual-core/Four-core processor, 1.4/1.6GHz clock speed, nanosecond instruction processing speed
500μs period 32 axis synchronous control, 1ms period 64 axis synchronous control.
128M Byte program capacity, 128MByte data capacity (including 5MByte support for power failure).
The main unit can be expanded with 32 QY20 series I/O modules, supporting DI, DO, AD, DA, PT, and TC. Data is retained even during power failures without the need for an external UPS module.

Comprehensive communication interfaces

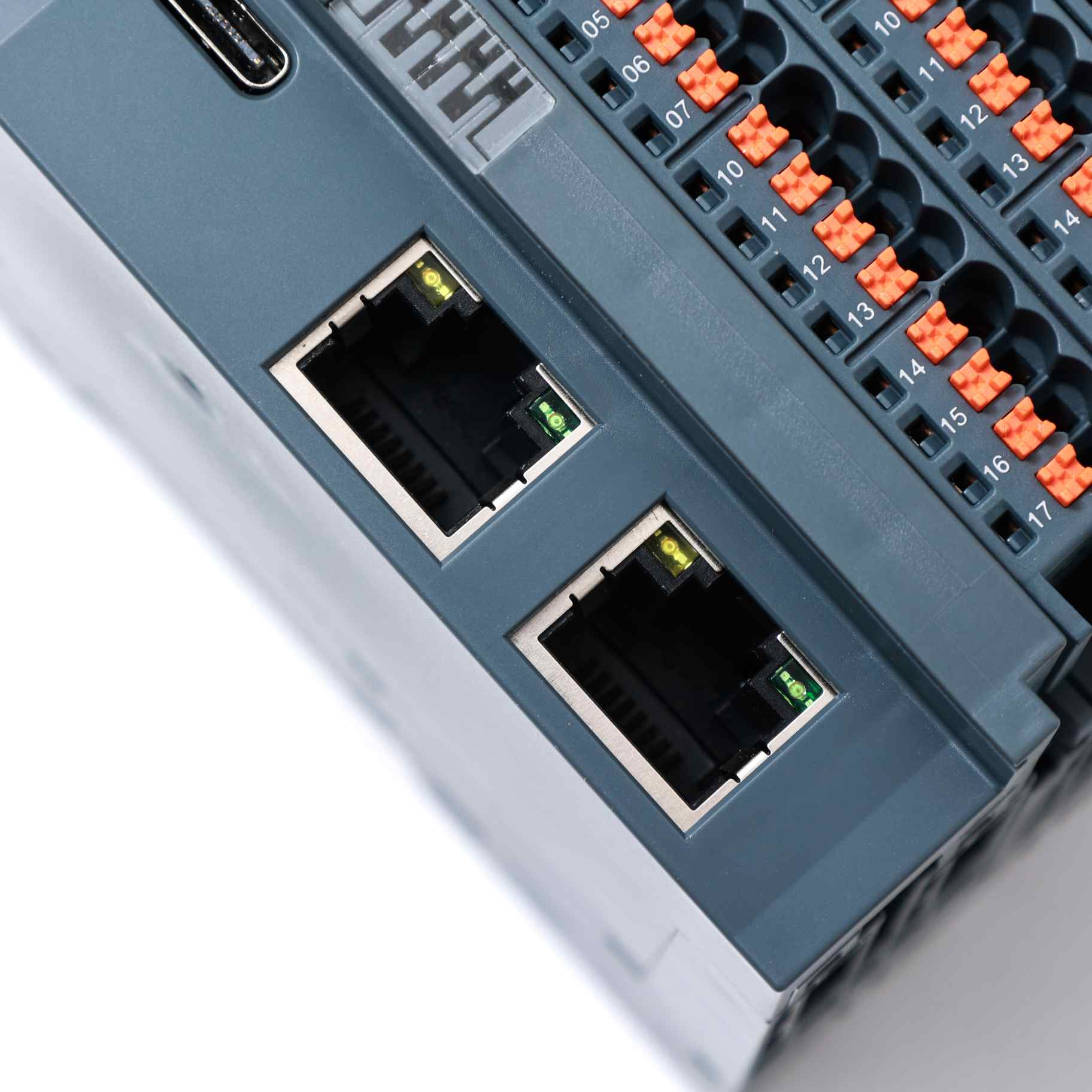

Supports two Ethernet ports, LAN1 of which can be configured as EtherCAT. EtherCAT supports up to 32/64/96 axis control and can connect 256 EtherCAT slaves. LAN2 supports ProfiNET master, while LAN1 and LAN2 both support 63 Modbus TCP slaves and 50 OPC UA session (client) connections. LAN1 and LAN2 both support EtherNET/IP master and slave.
Supports two RS485 communication channels (both master and slave modes) and one CAN communication channel, including 127 slaves when used as a CAN open master. CAN Free Protocol is also supported.
USB download of monitoring programs and firmware upgrades are supported.
Supports RJ45 network port protocol customization, and supports Modbus or EtherNet/IP with multiple IP addresses of different network segments through function expansion modules.

Flexible and comprehensive performance.

1ms cycle, 8-axis synchronous control, supports up to 64 axes.
The entire series supports EtherCAT linear, star, and ring network topology. Branch integration is possible via expansion modules.

Technical Specifications

Item		ZQ601	ZQ602	ZQ604
Input power supply		DC24V is 10%, the maximum is 4A, the typical is 2.4A, support short circuit/reverse connection protection, no external UPS is required
internal storage		4G
Data/storage capacity		128M program capacity, 128M data capacity (5M power-off retention space)
Communication specifications	EtherCAT	One main body, supporting expansion	One main body, which supports expansion	One main body, which supports expansion
	Modbus RTU	Route 2	Route 2	Route 2
	CAN communication	The main body has 1 CAN (up to 8 slaves) and supports CANopen and CAN free protocols
	OPC UA server	support	support	support
EtherCAT communication	Number of EtherCAT axes	16 axes + 16 axes	32 axes + 32 axes	32 axes + 64 axes
	EtherCAT slave	Supports up to 256
	Communication cycle	1ms8 axis synchronization	1ms 16-axis synchronization	1ms 16-axis synchronization
Profinet communication		Supports ProfiNET master/slave
Expand capabilities	Right IO expansion	The body supports 32 QY20 series blade modules
	Left function expansion	Ether CAT redundancy, Ether CAT coupler, 4-way routing, high-speed pulse, 4g/5g, remote debugging/monitoring, MQTT to the cloud, Ether CAT slave functions
	Remote extension	Supports EtherCAT and /EtherNet/IP/ProfNET/ModbusTCP/CAN distributed expansion
RUN/STOP		Can realize PLC stop/run
programming language		IEC61131-3

Performance & scalability

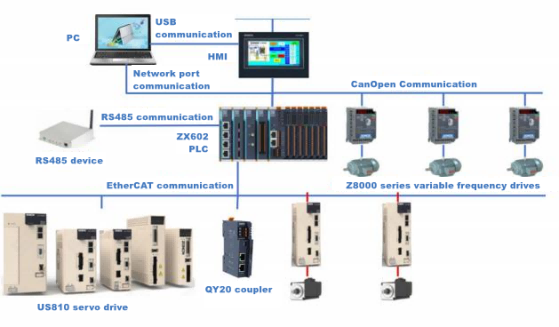

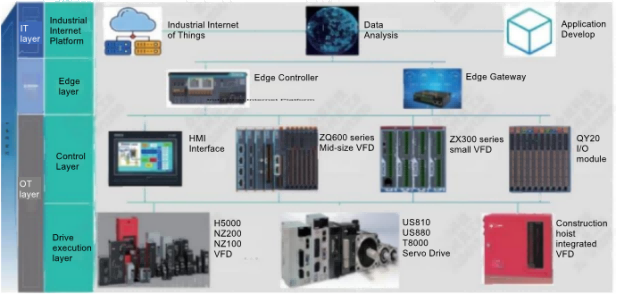

The ZQ600 PLC itself supports a variety of field buses and can achieve rich expansion connections. The conventional architecture diagram is shown below

Use ladder diagrams, function blocks, and ST language that comply with IEC61131-3/PLC open standards to effectively reduce project development time and improve project development efficiency.

Axis 1 Axis 2 Asxis 3 Axis 4 Axis 2 Axis 5 Axis6 Axis 256

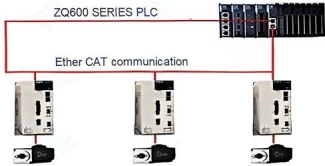

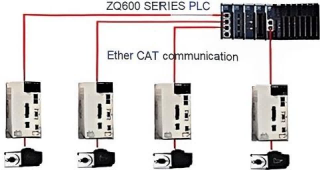

ZQ600 series PLC can realize linear connection mode, support 1ms16 axis synchronous control, the equipment can support 32/64/96 axis bus servo control, and up to 256 Ether CAT slaves.

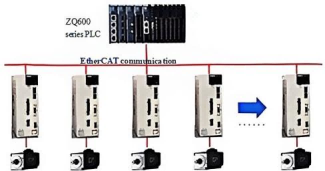

By cooperating with Ether CAT expansion port, the ring redundant connection can be realized

Axis 1 Axis 2 Axis3 Axis 4

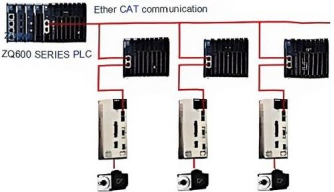

A star connection can be achieved by integrating the coupler function expansion module

The Ether CAT slave extension module enables the Ether CAT slave function to be connected to other master stations

Rich I/O expansion to expand the application field

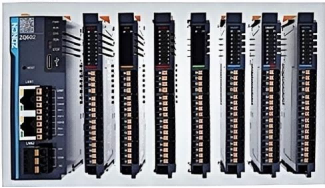

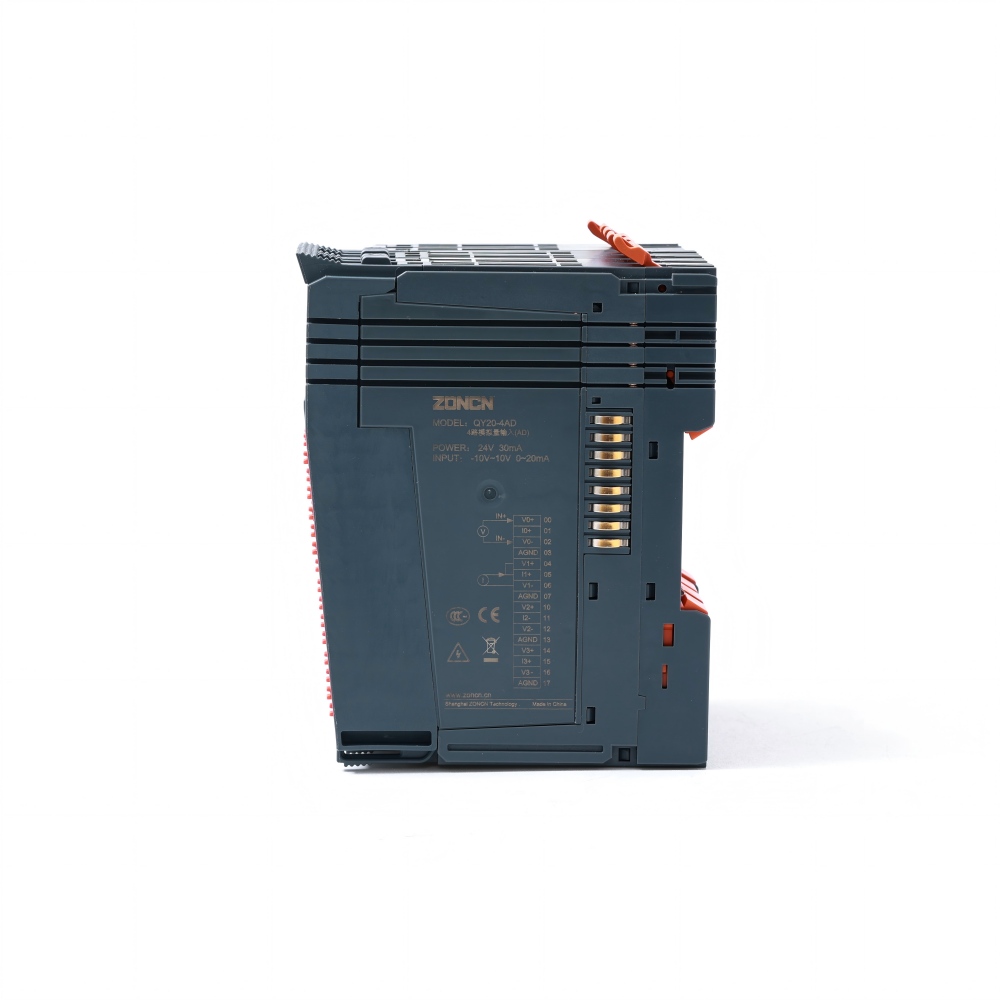

The body can be expanded with 32QY20 series IO modules to support DI,DO,AD,DA,PT and TC

The left expansion module with rich functions can adapt to different scene requirements

The body integrates 2485 and 1 CAN communication, and integrates one Ether CAT and one Ether NET. It supports Ether CAT, Ether NETIP and Profinet communication

The left function expansion module can be used to expand 4g/5g remote debugging,

Ether CAT slave, Ether CAT coupler, routing, high-speed IO, etc
