Disyuntor miniatura DZ47-125

Este dispositivo integra protección de seguridad dual: protección contra sobrecarga y protección contra cortocircuitos, además de contar con funciones de control de circuitos integrales para un funcionamiento estable y fiable. Ofrece una amplia gama de aplicaciones, abarcando diversos campos como edificios residenciales, diversas estructuras no residenciales, la industria energética y la infraestructura urbana.

Número de artículo :
DZ47-125
Pedido (cantidad mínima de pedido) :
50
Pago :
Paypal/TT/Western Union
Origen del producto :
Shanghai, China
Plazo de entrega :
18-30 days
Peso :
1kg

CONSULTE AHORA

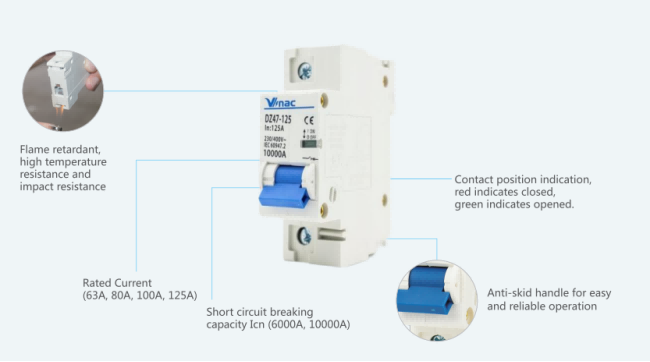

The DZ47-125 circuit breaker boasts excellent flame retardancy, high-temperature resistance, and impact resistance, along with a robust and durable structure. It is available in multiple rated current specifications—63A,80A,100A, and 125A—with short-circuit breaking capacities (Icn) reaching up to 6000A and 10000A, ensuring superior electrical protection. The product features a non-slip handle design for comfortable grip, easy operation, and reliable performance. It integrates safety features such as overload and short-circuit protection, along with practical circuit control functions, offering comprehensive safety protection and flexible, user-friendly control. With exceptional versatility, it is widely applicable in residential buildings, various non-residential structures, the energy sector, and urban infrastructure applications.

Product Features

Overload protection

Short circuit protection

Controlling

Used in residential building, non-residential building, energy source industry and infrastructure.

Release

Type	Test current	Tripping time	Type	Test current	Tripping time
B, C	1. 13In	t≥1h(In≤63A)	B	3In	t≥0. 1s
	1. 13In	t≥2h(In>63A)
			C	5In	t≥0. 1s
B, C	1. 45In	t<1h(In≤63A)
	1. 45In	t<2h(In>63A)	B	5In	t<0. 1s
B, C	2. 55In	1s<t<60s(In≤32A)
			C	10In	t<0. 1s
	2. 55In	1s<t<120s(In>32A)

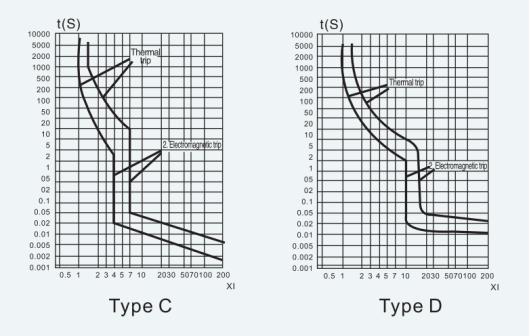

Curve Curve

Specifications

Standard		IEC/EN 60947-2
Rated current In	A	63, 80, 100, 125
Poles	P	1, 2, 3, 4
Rated voltage Ue	V	230/400
Insulation voltage Ui	V	500
Rated frequency	Hz	50/60
Rated breaking capacity	A	6000
Rated impulse withstand voltage(1. 2/50) Uimp	V	6000, 10000
Dielectric test voltage at ind. Freq. for 1min	KV	2. 5
Pollution degree		3
Thermo-magnetic release characteristic		8-12In
Electrical life	t	1500
Mechanical life	t	10000
Contact position indicator		Yes
Protection degree		IP20
Reference temperature for setting of thermal element		-5~+40(Special application please refer to temperature compensation correction)
Ambient temperature (with daily average≤35℃)	℃	30
Storage temperature	℃	-25~+70
Terminal connection type	℃	Cable/Pin-type busbar
Terminal size top/bottom for cable	mm²	50
Terminal size top/bottom for cable	AWG	18-1/0
Terminal size top/bottom for busbar	mm²	50
Terminal size top/bottom for busbar	AWG	18-1/0
Tightening torque	N*m	3. 5
Tightening torque	In-Ibs	31
Mounting		On DIN rail EN60715(35mm)by means of fast clip device
Connection		From top and bottom

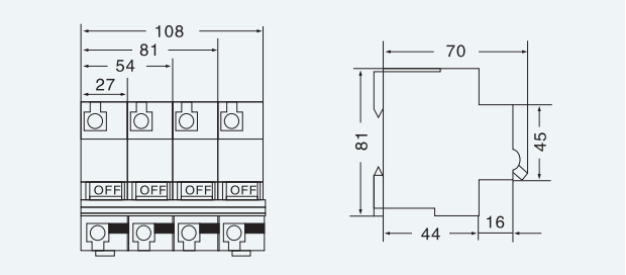

Overall and mounting dimensions
