DZ47LE-63 RCBO

El DZ47LE-63 es un interruptor automático compacto diseñado para edificios residenciales, que proporciona protección contra sobrecargas, corrientes de cortocircuito, corrientes de falla a tierra de CA sinusoidales, descargas eléctricas indirectas y directas, así como riesgos de incendio causados por fallas de aislamiento.

Número de artículo :
DZ47LE-63
Pedido (cantidad mínima de pedido) :
50
Pago :
Paypal/TT/Western Union
Origen del producto :
Shanghai, China
Plazo de entrega :
18-30 days
Peso :
1kg

CONSULTE AHORA

The device, a silent sentinel in the heart of every residential building, stands vigilant against a myriad of electrical perils. It forms an unyielding shield, safeguarding homes from the insidious threats of overload, where excessive current threatens to overwhelm circuits; short-circuit currents, sudden surges that can ignite chaos; sinusoidal alternating earth fault currents, stealthy leaks that seek ground; and both indirect and direct contacts, ensuring no human hand or metal surface becomes a conduit for harm. Beyond these, it guards against the smoldering danger of fire hazards born from insulation faults.

Product Features

Protection against overload and short-circuit currents.

Protection against the effects of sinusoidal alternating earth fault currents.

Protection against indirect contacts and additional protection against direct contacts.

Protection against fire hazard caused by insulation faults.

Used in residential building.

According to the type of instantaneous release classified as follows: type B(3-5)In, type C(5-10)In.

Release

Type	Test current	Tripping time	Type	Test current	Tripping time
B, C	1. 13In	t≥1h(In≤63A)	B	3In	t≥0. 1s
	1. 13In	t≥2h(In>63A)
			C	5In	t≥0. 1s
B, C	1. 45In	t<1h(In≤63A)
	1. 45In	t<2h(In>63A)	B	5In	t<0. 1s
B, C	2. 55In	1s<t<60s(In≤32A)
			C	10In	t<0. 1s
	2. 55In	1s<t<120s(In>32A)

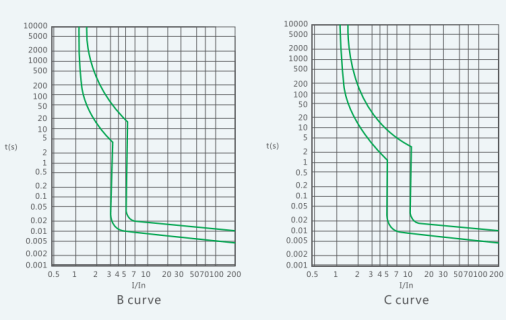

Curve (IEC/EN 60898-1) B, C Curve

Specifications

Type	Standard	-	IEC/EN 61009-1
Electrical features	Poles	P	1P+N, 2, 3, 3P+N, 4
	Type (wave form of the earth leakage sensed)	-	AC
	Thermo-magnetic release characteristic	-	B, C
	Rated current In	A	6, 10, 16, 20, 25, 32, 40, 50, 63
	Rated voltage Ue	V	230/400
	Rated sensitivity IΔn	A	0.03, 0.05, 0.1, 0.3
	Rated residual making and breaking capacity IΔm	A	500(In ≤ 40A) / 630(In > 40A)
	Rated short-circuit capacity Icn	A	4500, 6000
	Break time under IΔn	S	≤ 0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage (1.2/50)Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1min	KV	2
	Insulation voltage Ui	V	500
	Pollution degree	-	2
Mechanical features	Electrical life	t	2000
	Mechanical life	t	2000
	Contact position indicator	-	Yes
	Protection degree	-	IP20
	Ambient temperature (with daily average ≤ 35℃)	℃	-5 ~ +40
	Storage temperature	℃	-25 ~ +70
Installation	Terminal connection type	-	Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for cable	AWG	18-3
	Terminal size top/bottom for busbar	mm²	25
	Terminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N·m	2
	Tightening torque	In-lbs	18
	Mounting	-	On DIN rail EN60715 (35mm) by fast clip
	Connection	-	From top

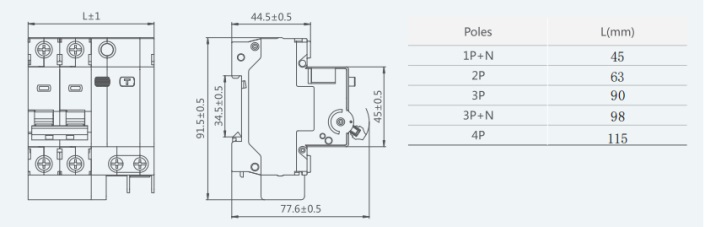

Overall and mounting dimensions
