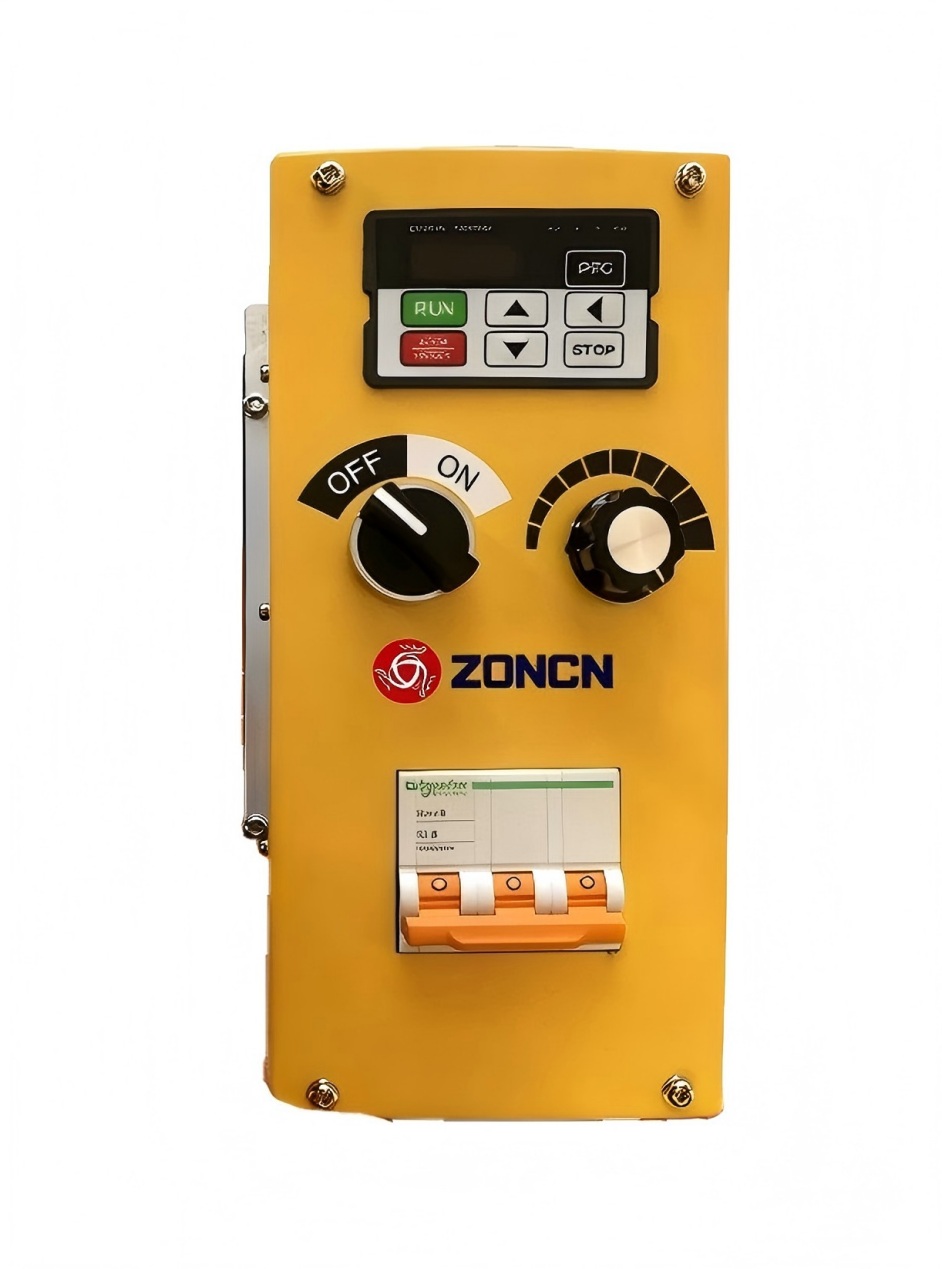

Este variador de frecuencia integrado combina multifuncionalidad, funcionamiento suave y ultrasilencioso, tamaño compacto, facilidad de uso y eficiencia energética. Cuenta con una alta frecuencia portadora de 12 kHz, interruptor giratorio/potenciómetro digital/botón de arranque integrados para uso plug-and-play, diseño compacto sin armario, mecanismos de protección integrales, control vectorial de alto rendimiento optimizado para ventiladores industriales con excelente respuesta a baja velocidad y potencias nominales de 0,75 a 2,2 kW tanto a 220 V como a 380 V.
Número de artículo :
T100TPedido (cantidad mínima de pedido) :
20Pago :
Paypal/TT/Western UnionOrigen del producto :
Shanghai, ChinaColor :
BlackPlazo de entrega :
18-30 daysPeso :
73kgThis all-in-one VFD is a game-changer for industrial fan applications, blending ultra-quiet, smooth operation, compact size, and effortless energy savings. With a 12 kHz carrier frequency, it runs nearly silently, even at low speeds. Its plug-and-play design—integrating the VFD, controls, and start button—cuts installation time to zero, no assembly or wiring required. Compact enough to fit without a cabinet, it saves valuable floor space while delivering reliable performance. Built-in protection keeps operations safe, while advanced vector control, tuned specifically for fans, ensures rock-solid low-speed response. Available in 0.75–2.2 kW ratings for both 220 V and 380 V systems, it’s the perfect turnkey solution for any industrial fan setup.
Product Features
Technical Specifications
| Category | Item | T100T Specification |
| Basic Functions | Control Mode | Open-loop vector control (without PG) |
| Max. Frequency | 0~600.0Hz | |
| Carrier Frequency | 0.5kHz~12.0kHz; auto-adjustable based on load characteristics | |
| Input Frequency Resolution | Digital setting: 0.1Hz
|
|
| Starting Torque | G-type: 150% at 0.5Hz (without PG) | |
| Speed Range | 1:200 (without PG) | |
| Speed Stability Accuracy | ±0.5% (without PG) | |
| Overload Capacity | G-type: 150% rated current for 60s; 180% rated current for 3s | |
| Torque Boost | Auto torque boost; manual torque boost: 0.1%~30.0% | |
| Acceleration/Deceleration Curve | Linear or S-curve acceleration/deceleration; 4 sets of acceleration/deceleration times, range 0.0~6500.0s | |
| DC Braking | DC braking frequency: 0.00Hz~max frequency
|
|
| Jog Control | Jog frequency range: 0.0Hz~500.0Hz; jog acceleration/deceleration time: 0.0s~6500.0s | |
| Auto Voltage Regulation (AVR) | Automatically maintains constant output voltage during mains voltage fluctuations | |
| Overvoltage/Overcurrent Stall Control | Automatically limits current and voltage during operation to prevent frequent overcurrent/overvoltage tripping | |
| Fast Current Limiting | Minimizes overcurrent faults to protect the drive | |
| Torque Limiting & Control | "Excavator" characteristic; automatically limits torque during operation to prevent frequent overcurrent tripping | |
| Custom Functions | High Performance | Implements asynchronous motor control using high-performance current vector control technology |
| Ride-Through Operation | Compensates for voltage drops via load feedback energy during momentary power outages to maintain operation for a short time | |
| Fast Current Limiting | Prevents frequent overcurrent faults | |
| Timing Control | Timing function with setting range: 0.0Min~6500.0Min | |
| Communication Support | RS-485 | |
| Operation | Command Source | Operation panel setting, control terminal setting, serial communication port setting; switchable via multiple methods |
| Frequency Source | 10 frequency sources: digital setting, analog voltage setting, analog current setting, serial port setting; switchable via multiple methods | |
| Input Terminals | 5 digital input terminals; 1 analog input terminal supporting 0~10V voltage input | |
| Output Terminals | 1 relay output terminal | |
| Display & Keypad Operation | LED Display | Displays parameters |
| Keypad Lock & Function Selection | Enables partial or full keypad lock, defining the scope of keypad functions to prevent misoperation | |
| Protection Functions | Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, etc. | |
| Environment | Installation Site | Indoor, no direct sunlight, free of dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water, or salt spray |
| Altitude | Below 1000m | |
| Ambient Temperature | -10℃~+40℃ (derating required for 40℃~50℃) | |
| Humidity | Less than 95%RH, no condensation | |
| Vibration | Less than 5.9m/s² (0.6g) | |
| Storage Temperature | -20℃~+60℃ | |
| Protection Class | IP20 |
Specifications
| Inverter Model | Input Voltage | Rated Output Power (kW) | Rated Input Current (A) | Rated Output Current (A) | Matched Motor (kW) |
| T9200T-0R75G | 1PH AC220V ±15% | 0.75 | 7.2 | 3.8 | 0.75 |
| T9200T-1R5G | 1PH AC220V ±15% | 1.5 | 10 | 5.1 | 1.5 |
| T9200T-2R2G | 1PH AC220V ±15% | 2.2 | 16 | 9.0 | 2.2 |
| T120T-0R75G | 3PH AC380V ±15% | 0.75 | 3.8 | 2.1 | 0.75 |
| T120T-1R5G | 3PH AC380V ±15% | 1.5 | 5 | 3.8 | 1.5 |
| T120T-2R2G | 3PH AC380V ±15% | 2.2 | 5.8 | 5.1 | 2.2 |

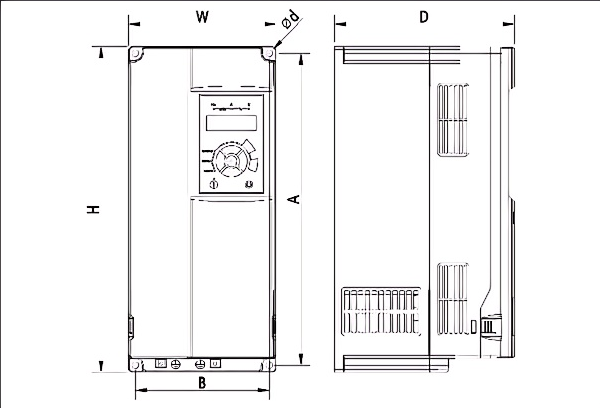

Dimension
